Box3 Wiring Loom

Standard wiring loom for Box3 autosteer systems.

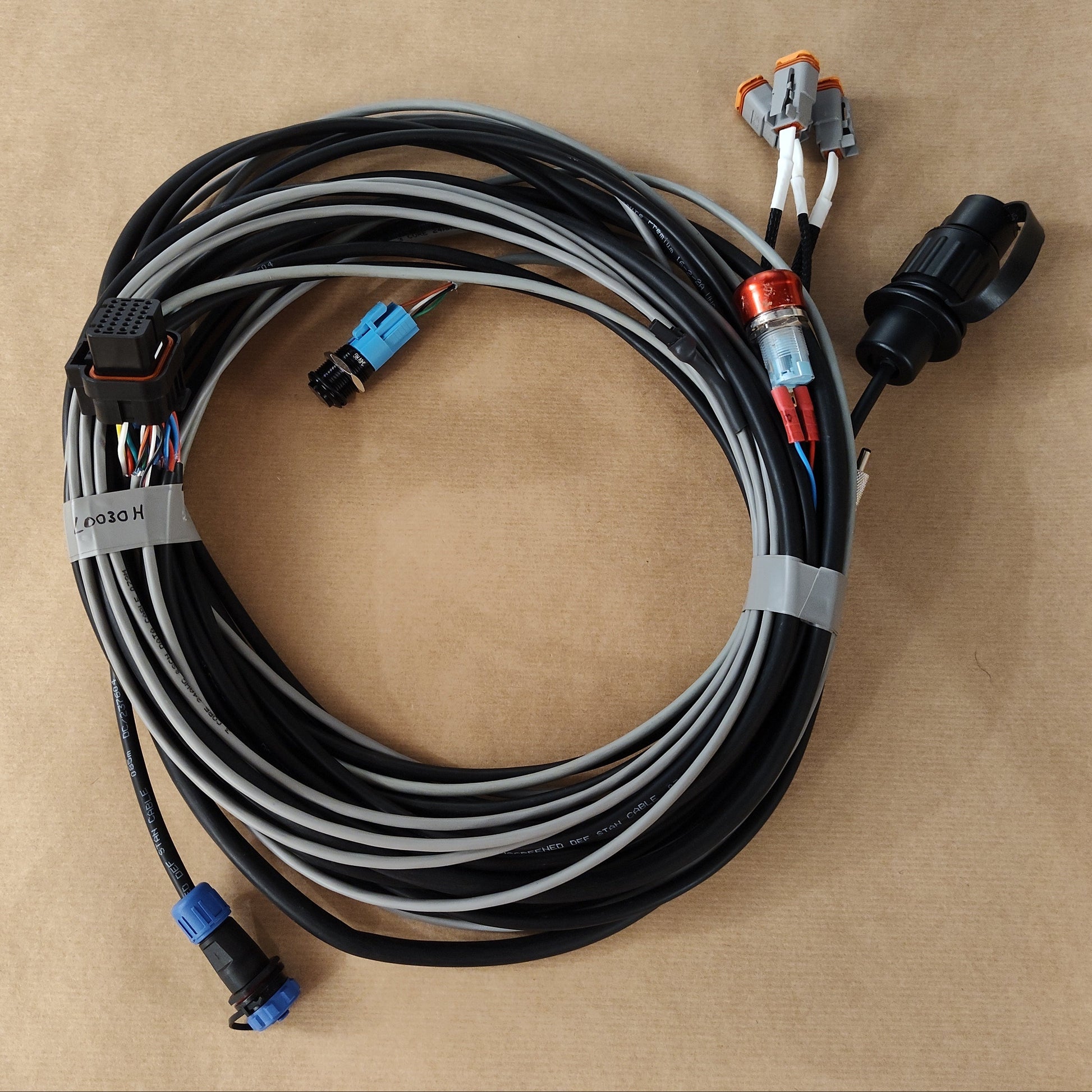

This loom contains:

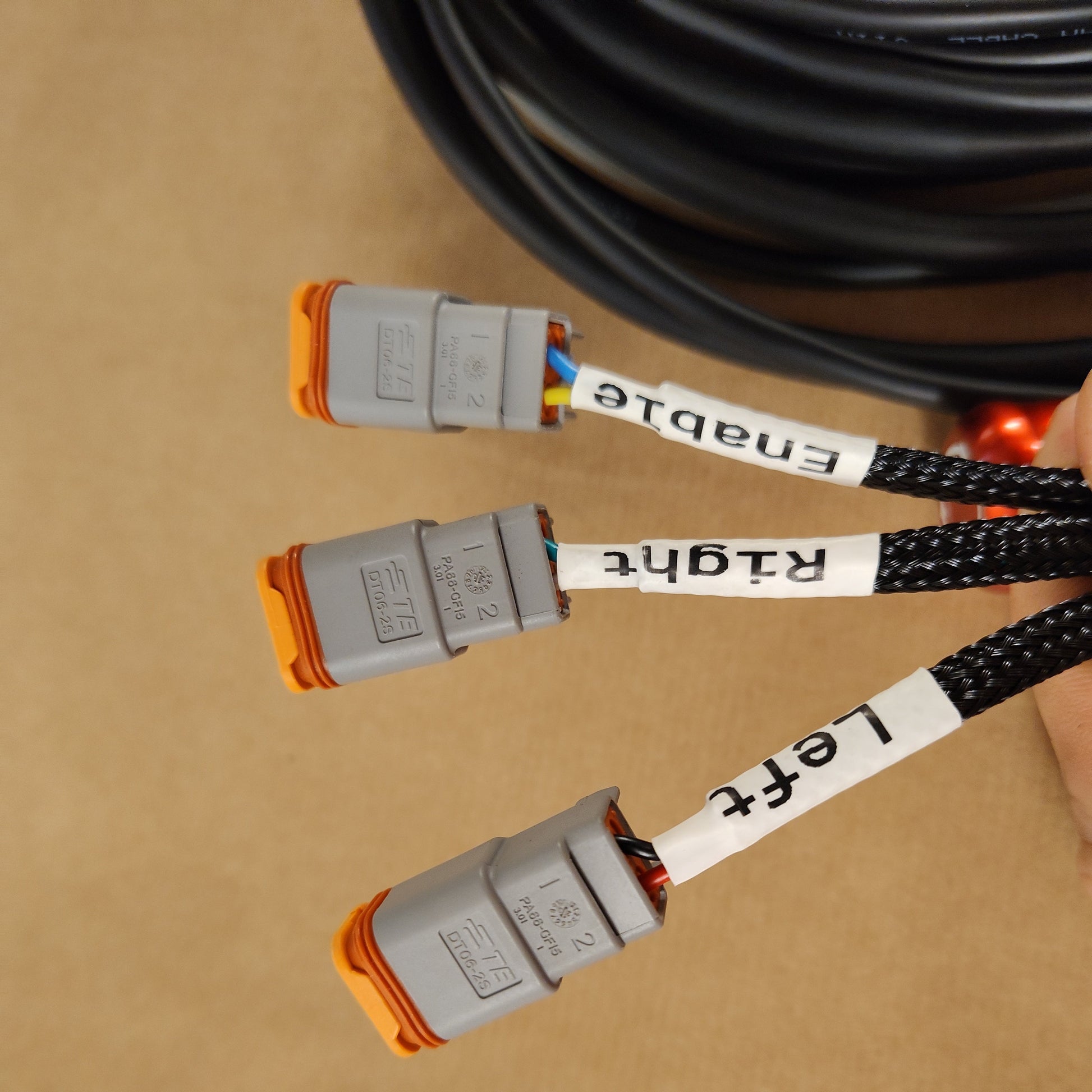

• 3m valve cable with 3x Deutsch DT06-2P connector
• 2.5m workswitch cable with standard CSEQ Technologies connector

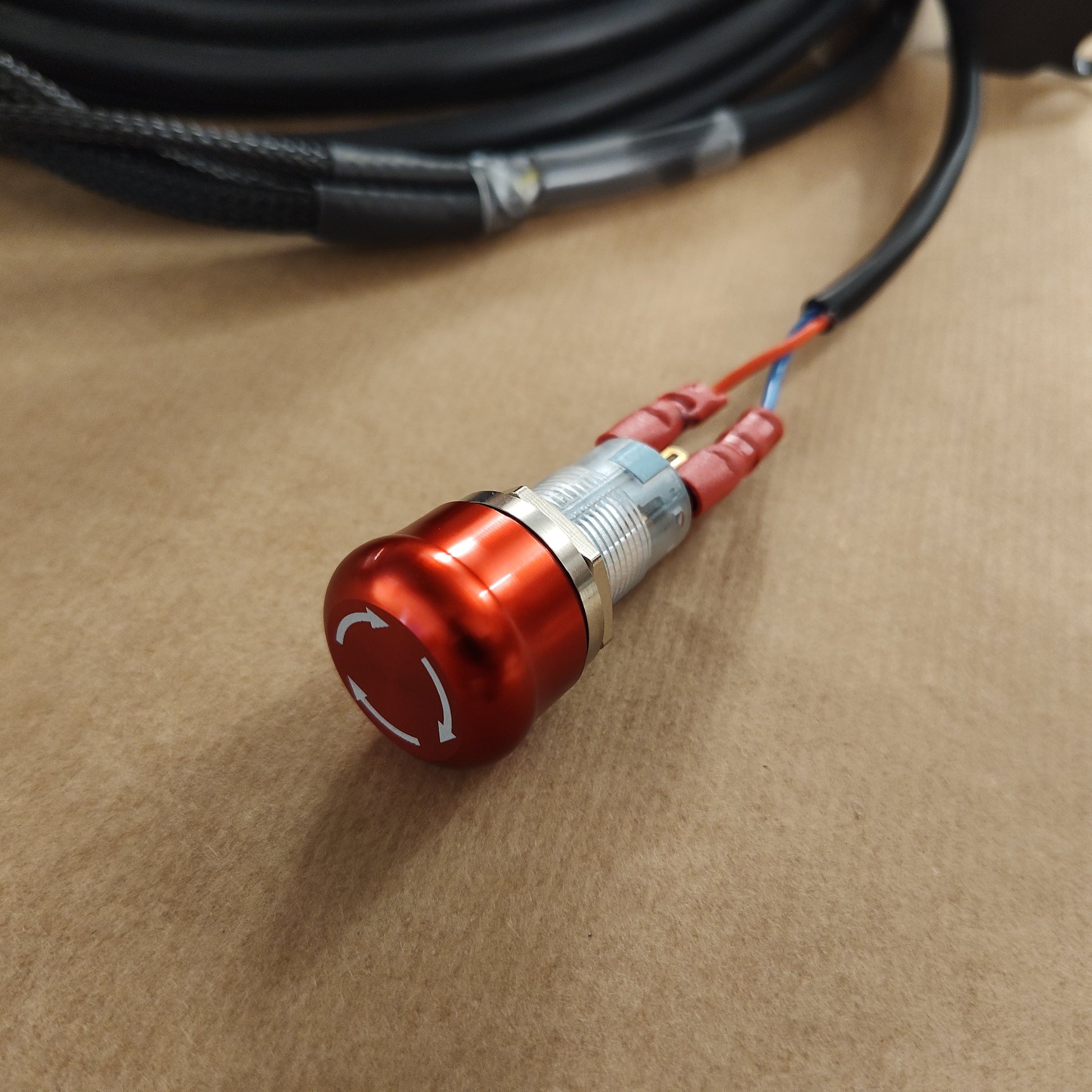

• 2m ESTOP cable with emergency stop button

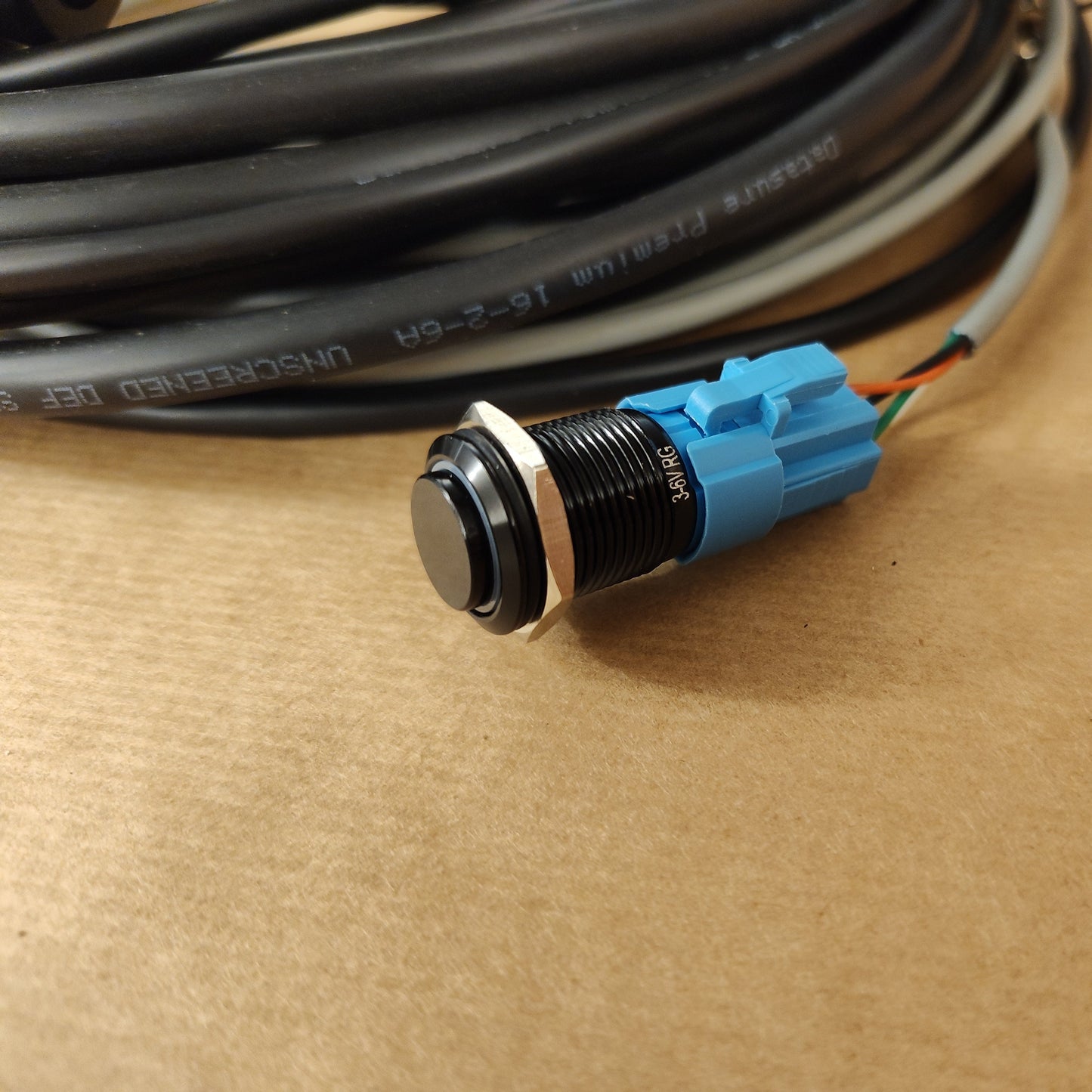

• 3m autosteer engage cable with 16mm illuminated button

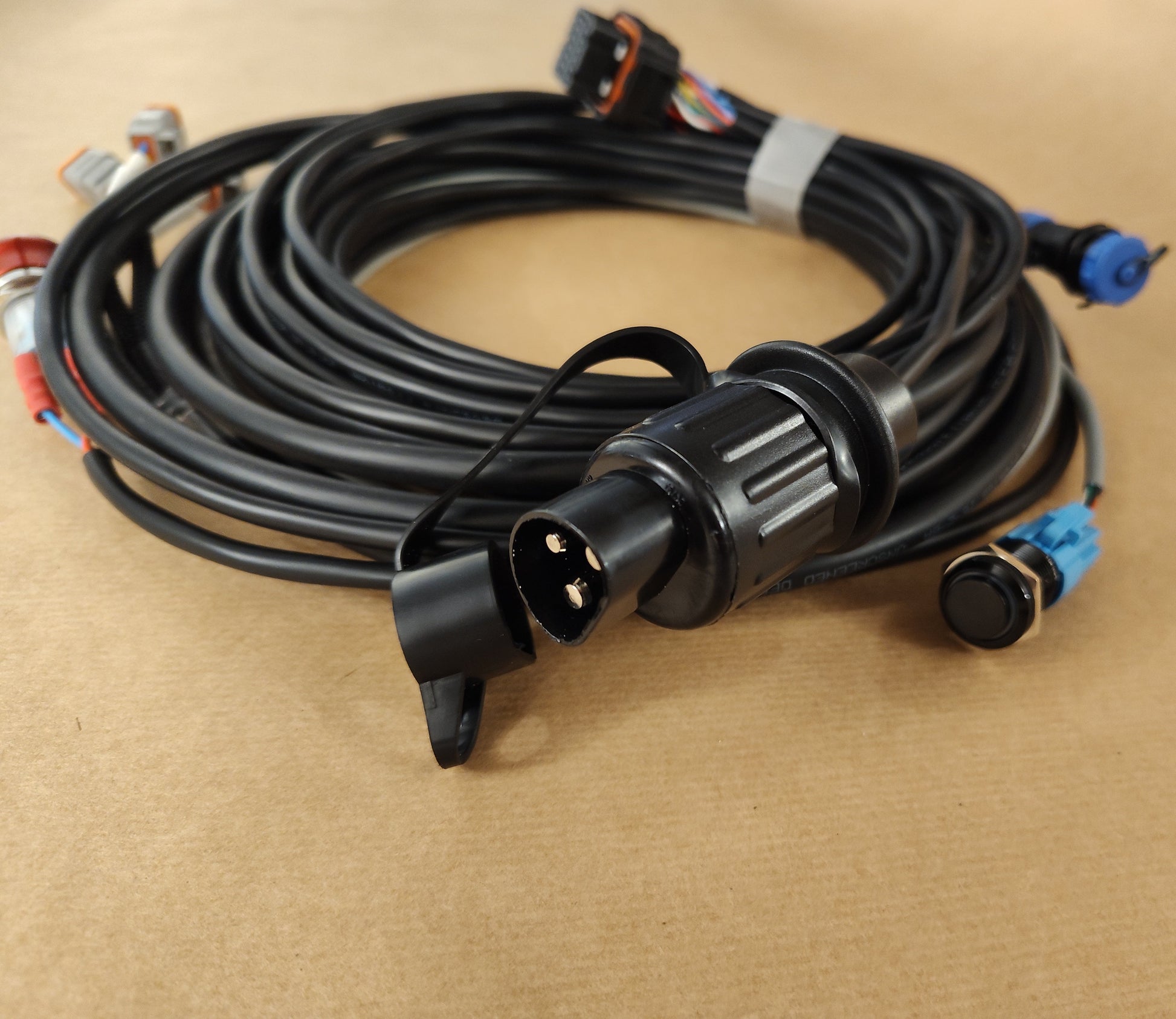

• 2m power cable with DIN 9680 connector
• 2m tablet charging cable with 1.4mm barrel jack
• 5m shielded WAS cable with JWPF connector

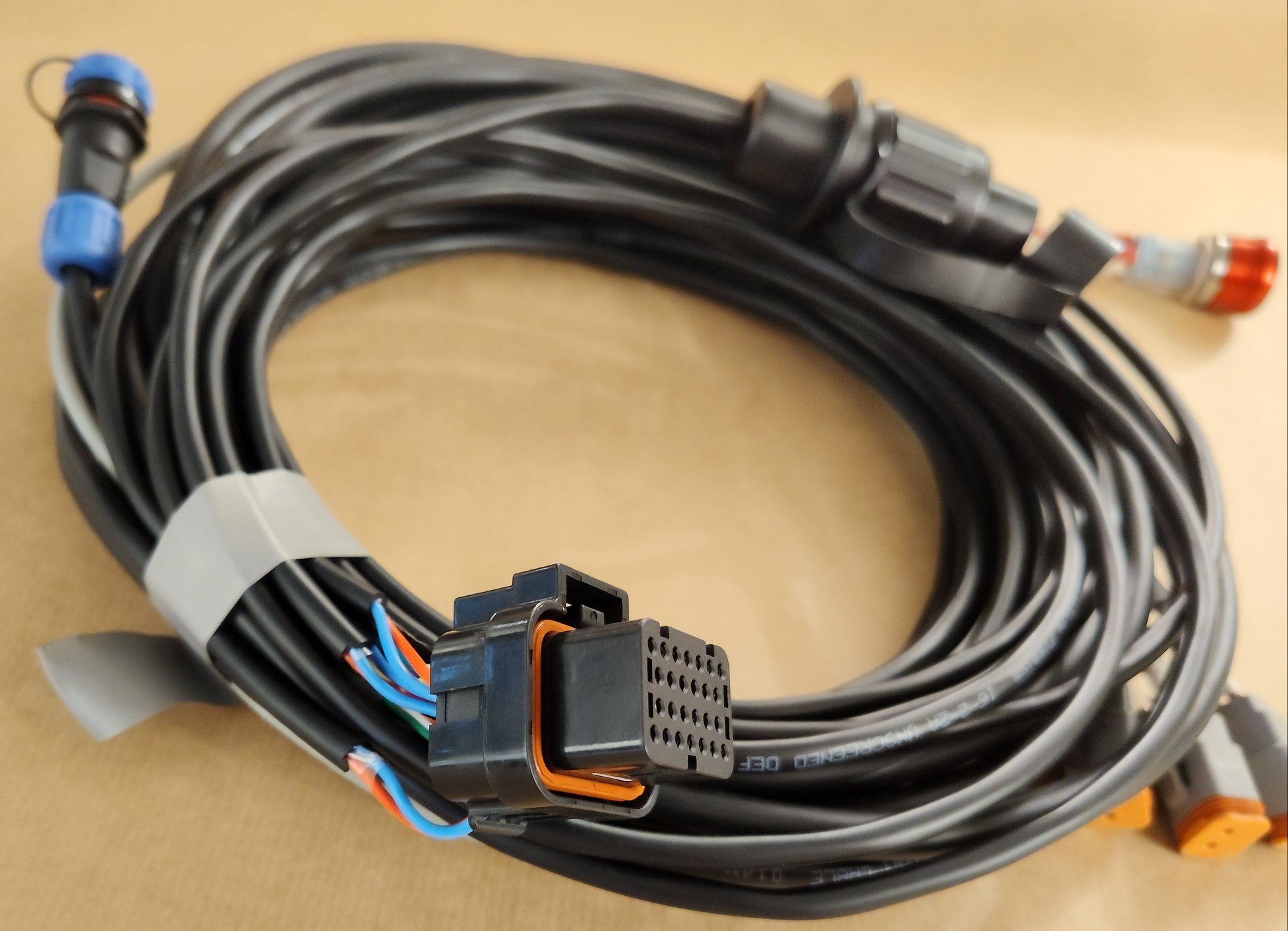

Vehicle connector pin assignment:

1. Ground (Gnd)
2. Gnd
3. Left coil
4. Gnd
5. Right coil
6. Gnd
7. Enable coil
8. Section 1
9. Section 2
10. Section 3
11. Section 4
12. Gnd
13. Workswitch input (switch to Pin 12)
14. +3.3v
15. ESTOP input (Switch to Pin 14)
16. Autosteer enable LED output
17. Gnd
18. Autosteer button input (Switch to Pin 19)
19. Gnd
20. 12V power ground
21. 12V power input
22. 12V power output (tablet power jack)
23. Gnd
24. WAS +5V
25. WAS analogue 0-5V input
26. WAS Gnd
