Our complete autosteer kit contains everything you need to get your tractor steering hydraulically. If your tractor is steer ready, please go back and choose the Steer Ready complete kit.
The kit is easily installed over a weekend by any mechanically competent farmer, and with our comprehensive instructions you'll be up and running in record time!

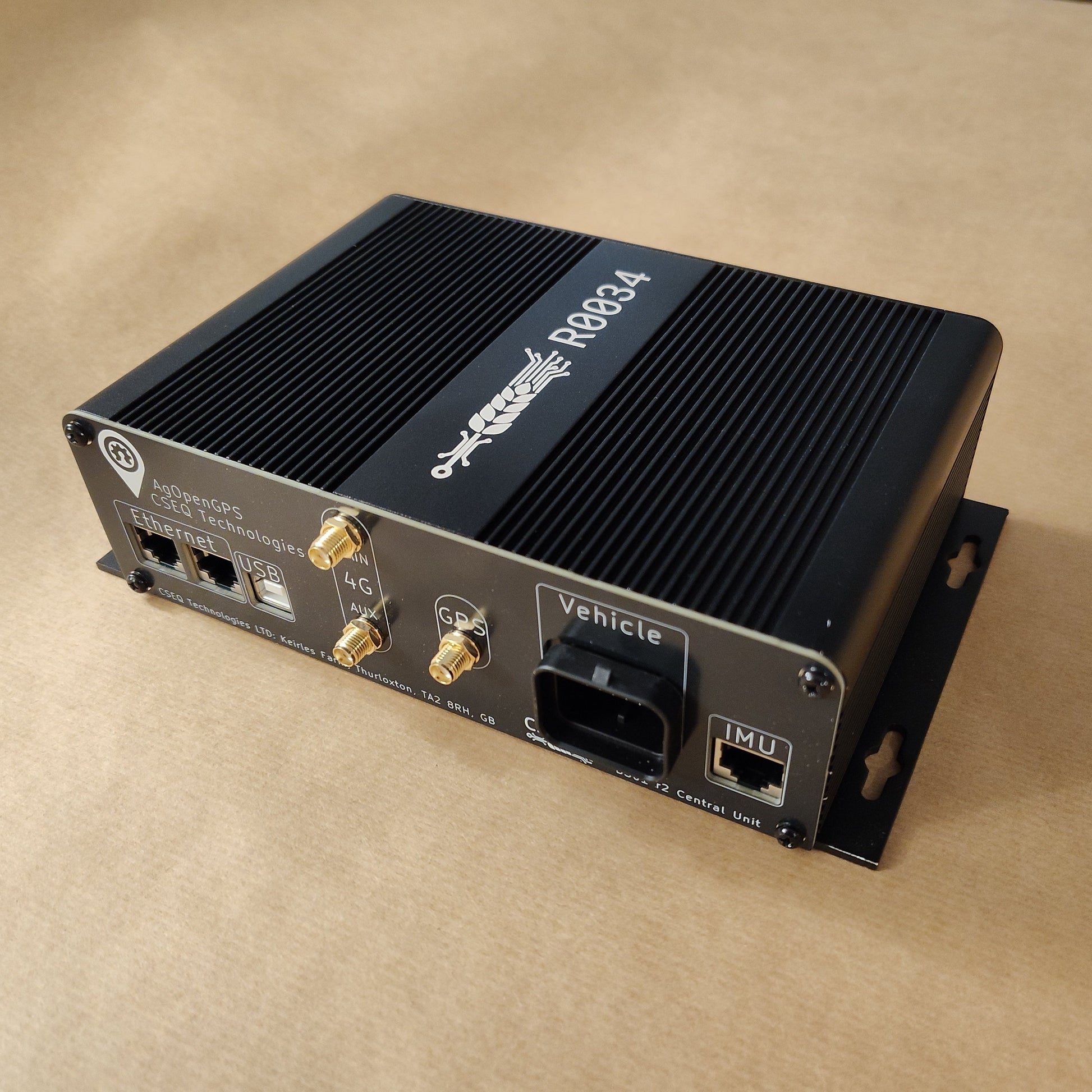

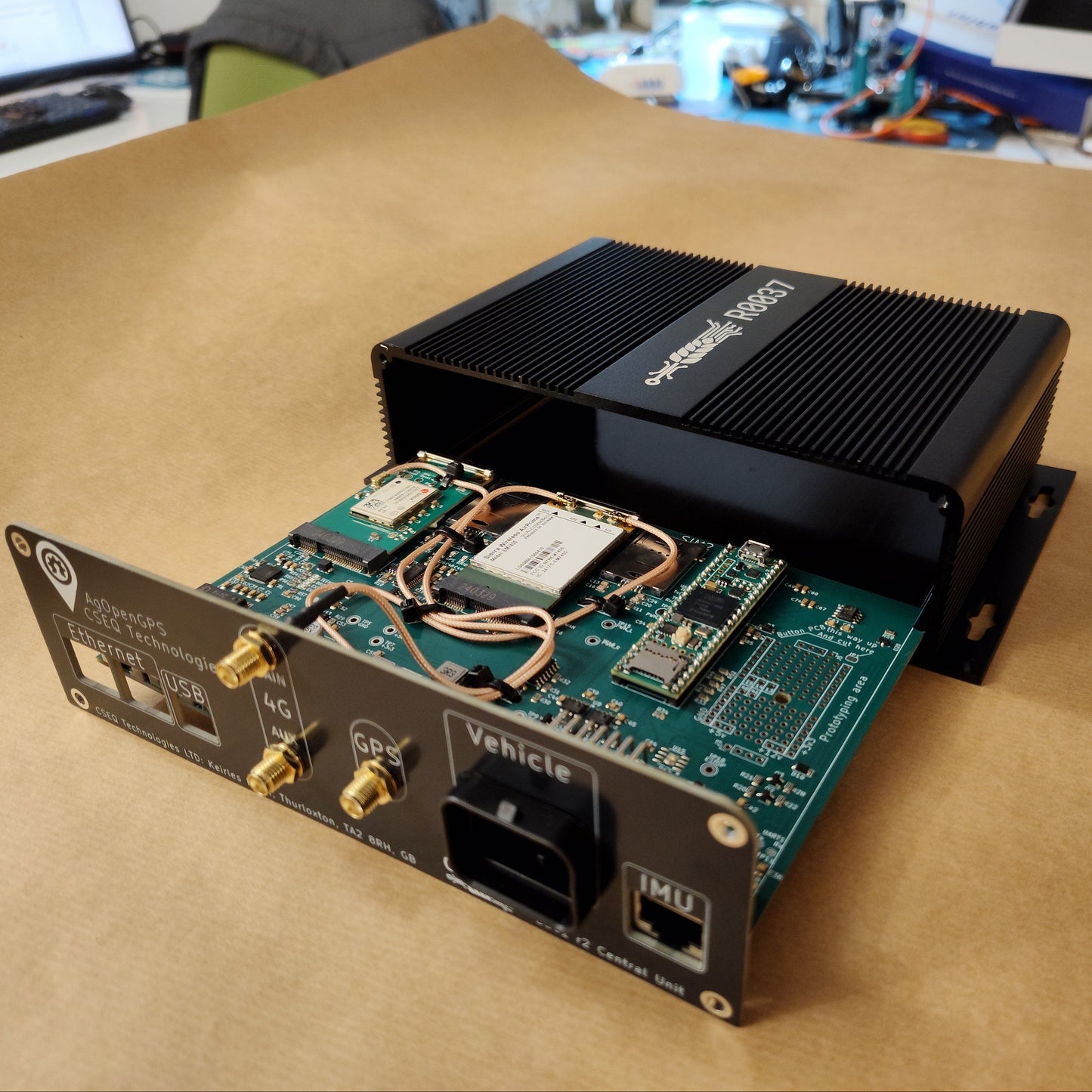

The Box3 is our latest steering controller, designed from the ground up for simplicity and reliability. As well as the core GPS and steering features, the Box3 sports four 12V section control outputs, two PoE ethernet expansion ports, and a powerful 4G modem for receiving RTK corrections in all terrain.
Powered by AgOpenGPS, the software includes the most advanced features such as U-turn, graphical AB line creation, section control and more. Updates available regularly, completely free.
Also, if you are in a new area for our RTK network, you are eligible to receive a FREE RTK base station and RTK signal. We will contact you at the time of purchase, if this is the case.

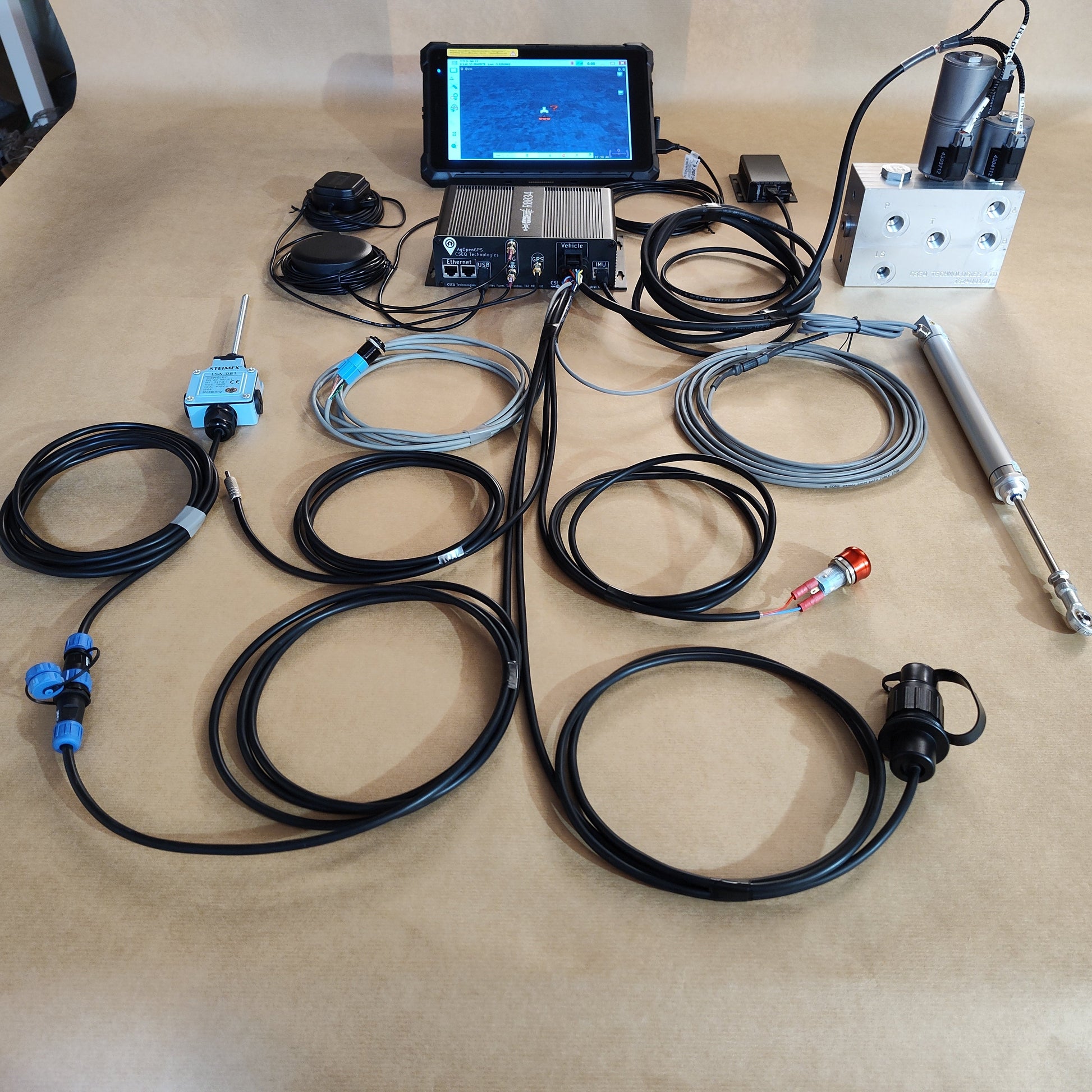

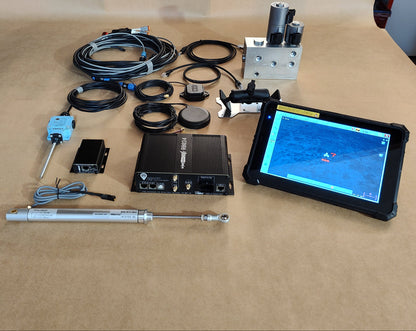

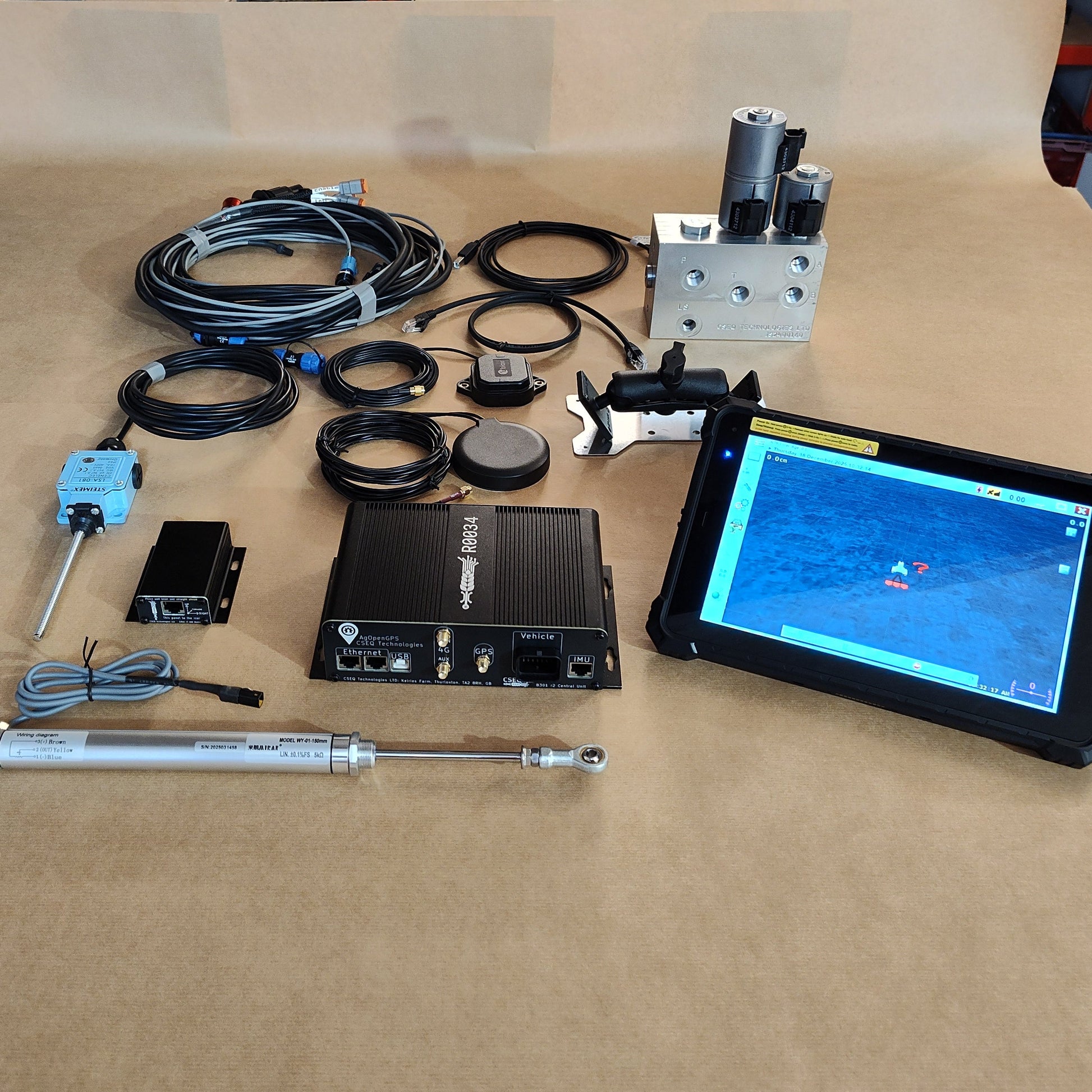

This kit contains:

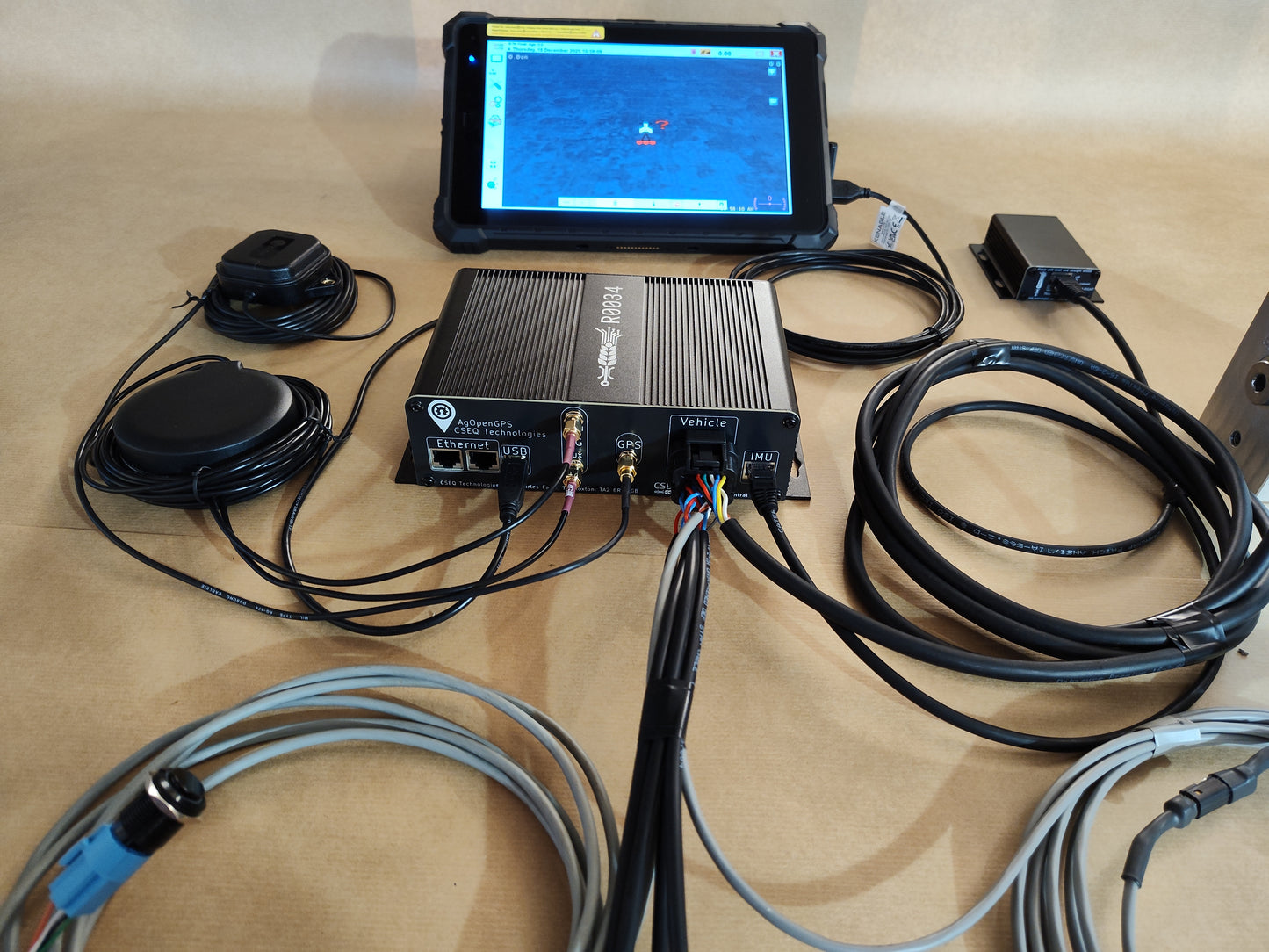

- Box3 steering controller
- 10" Rugged tablet pre-loaded with AgOpenGPS

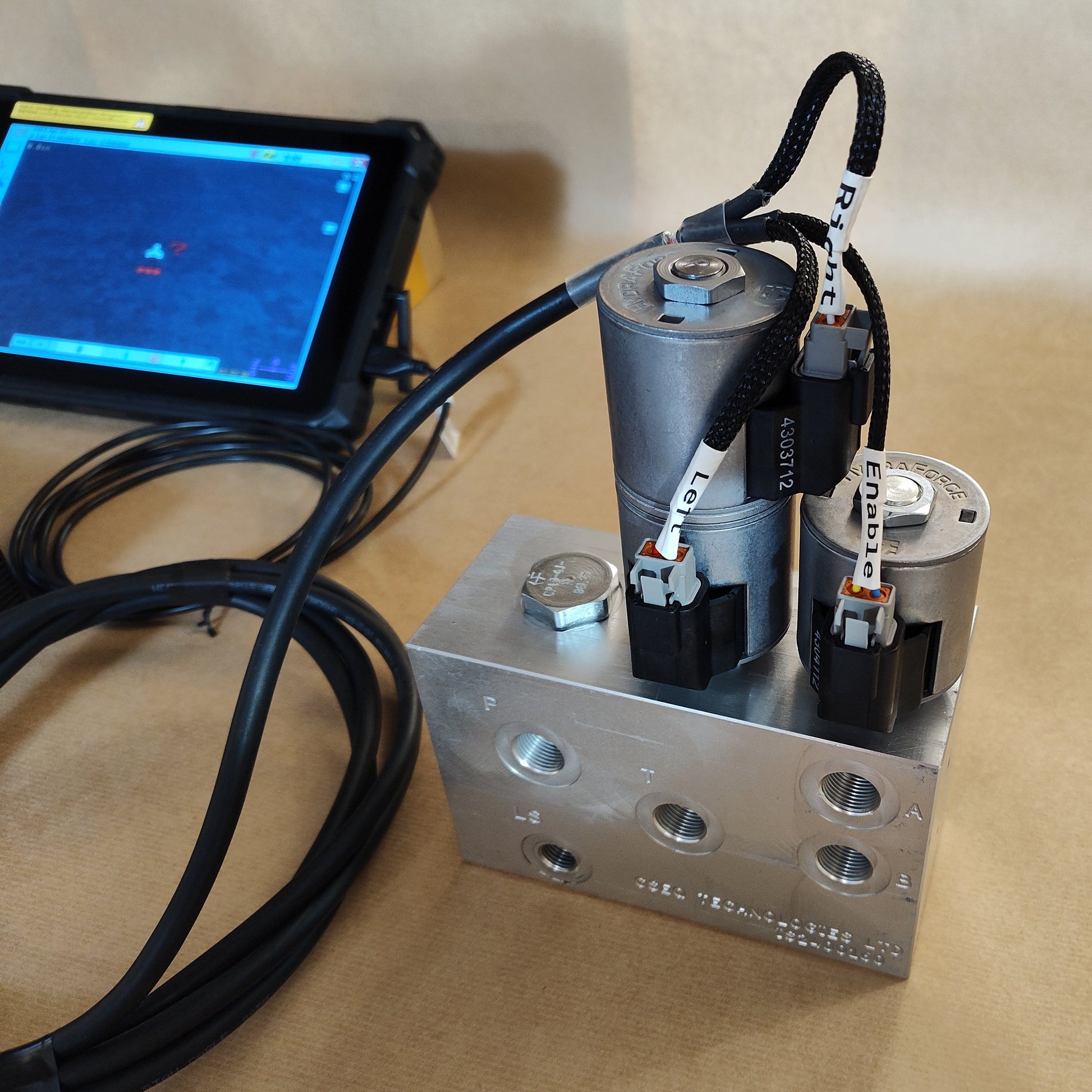

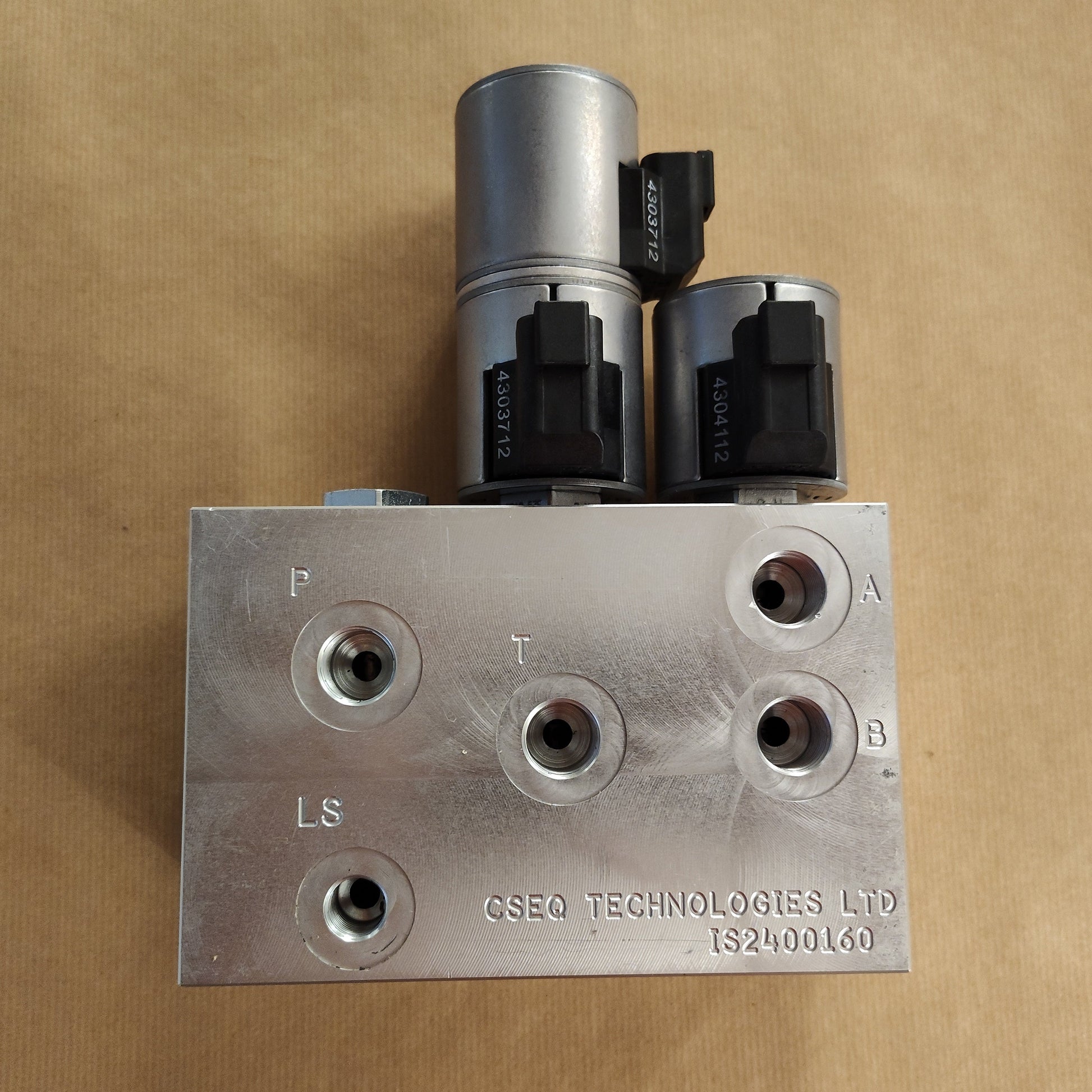

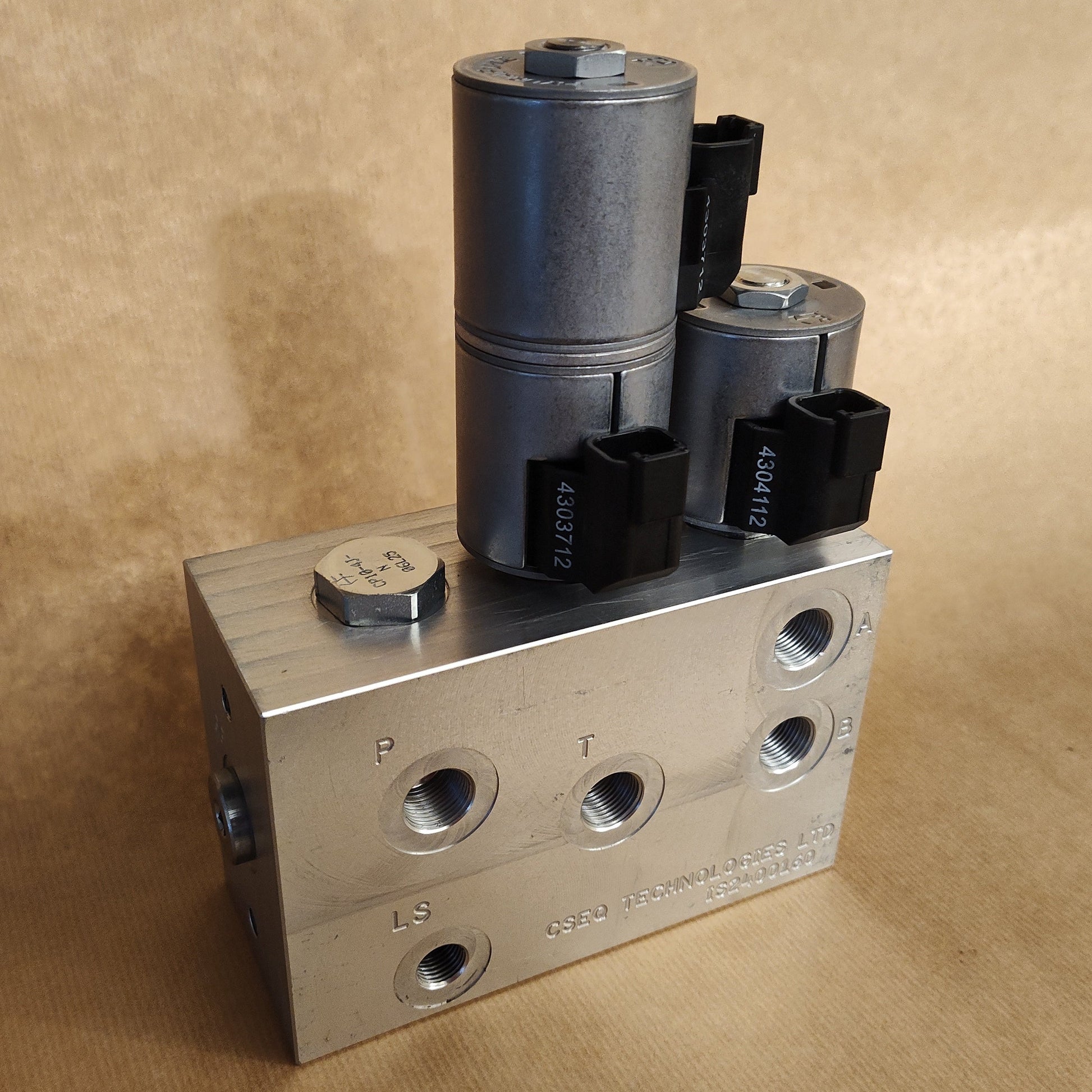

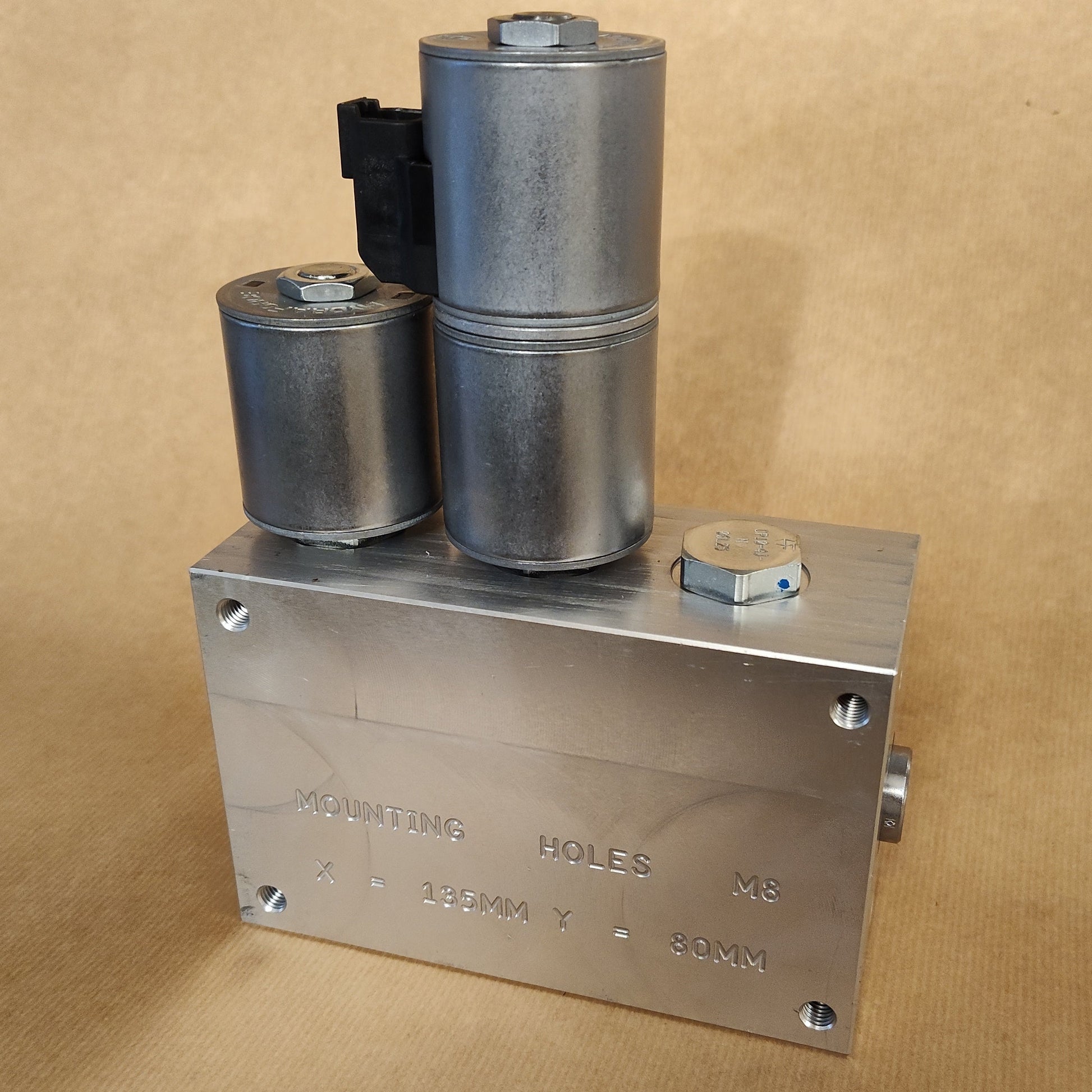

- Hydraulic valve (open or closed centre, depending on your tractor)

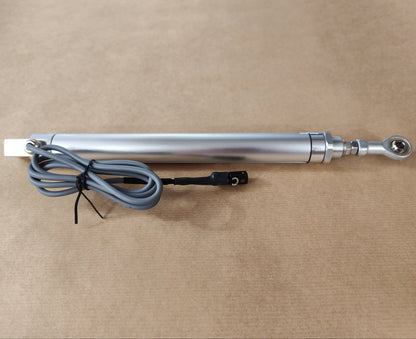

- Linear Wheel Angle Sensor (WAS)

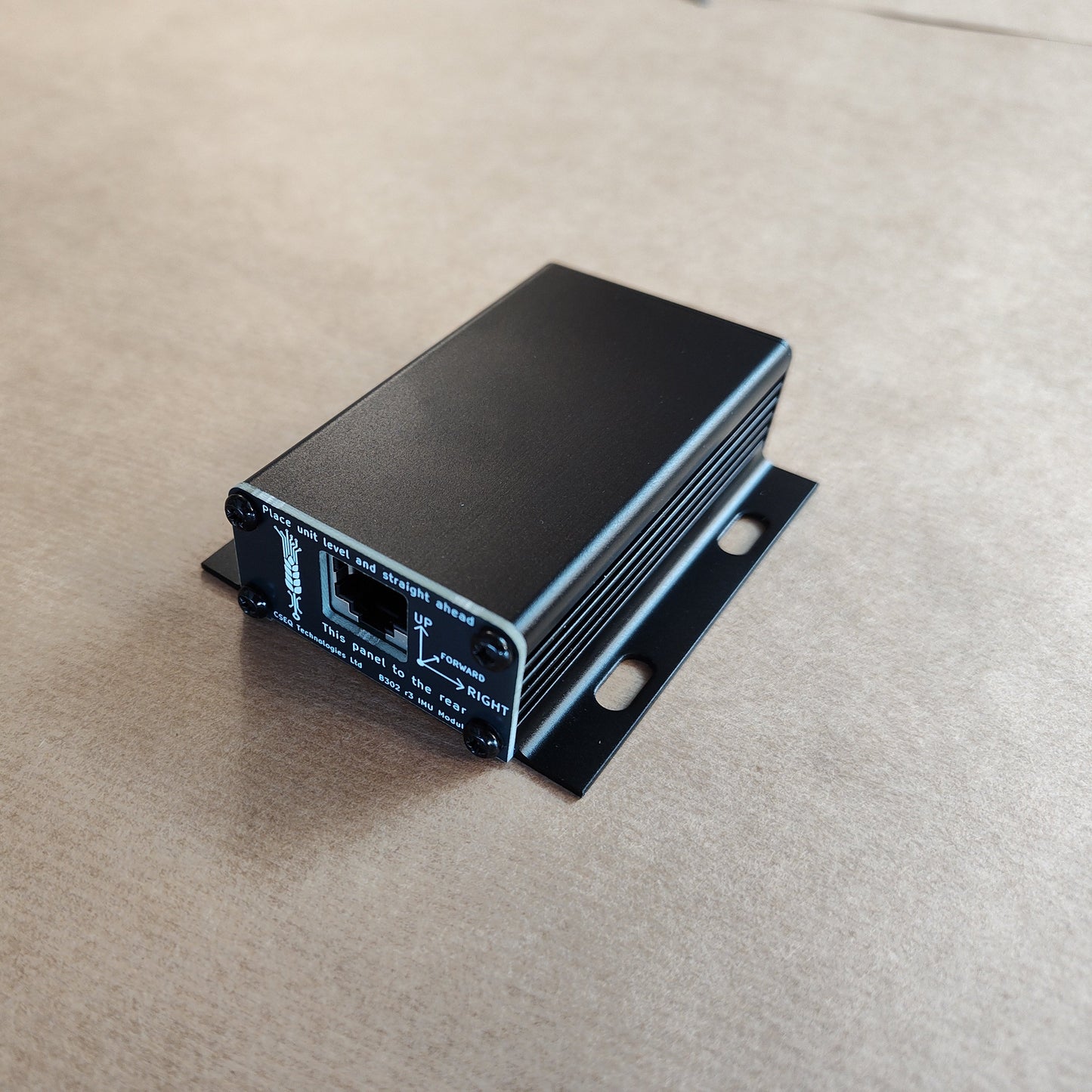

- IMU terrain compensation unit
- GPS and 4G antennas

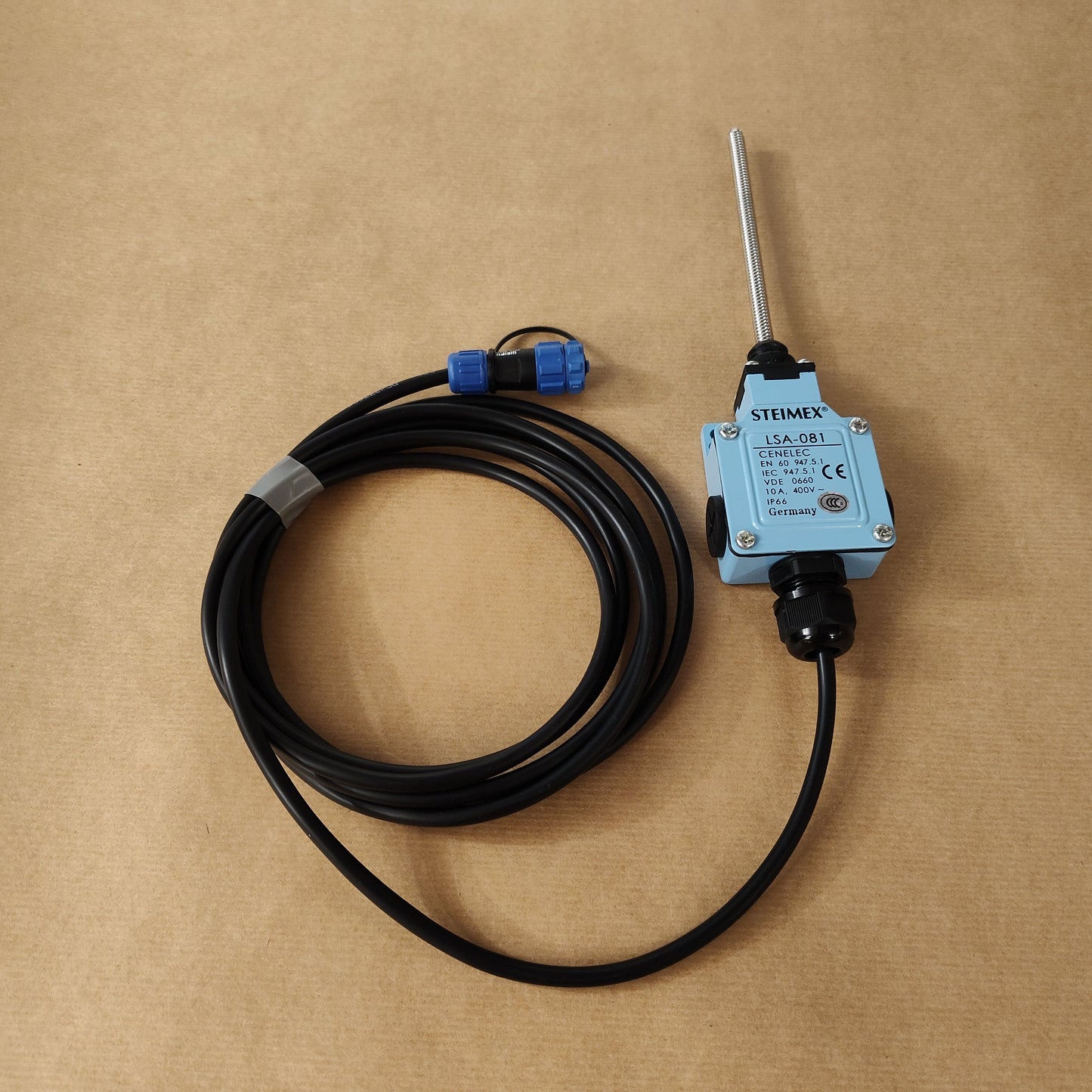

- Work recording switch
- Steer engage and E-STOP buttons

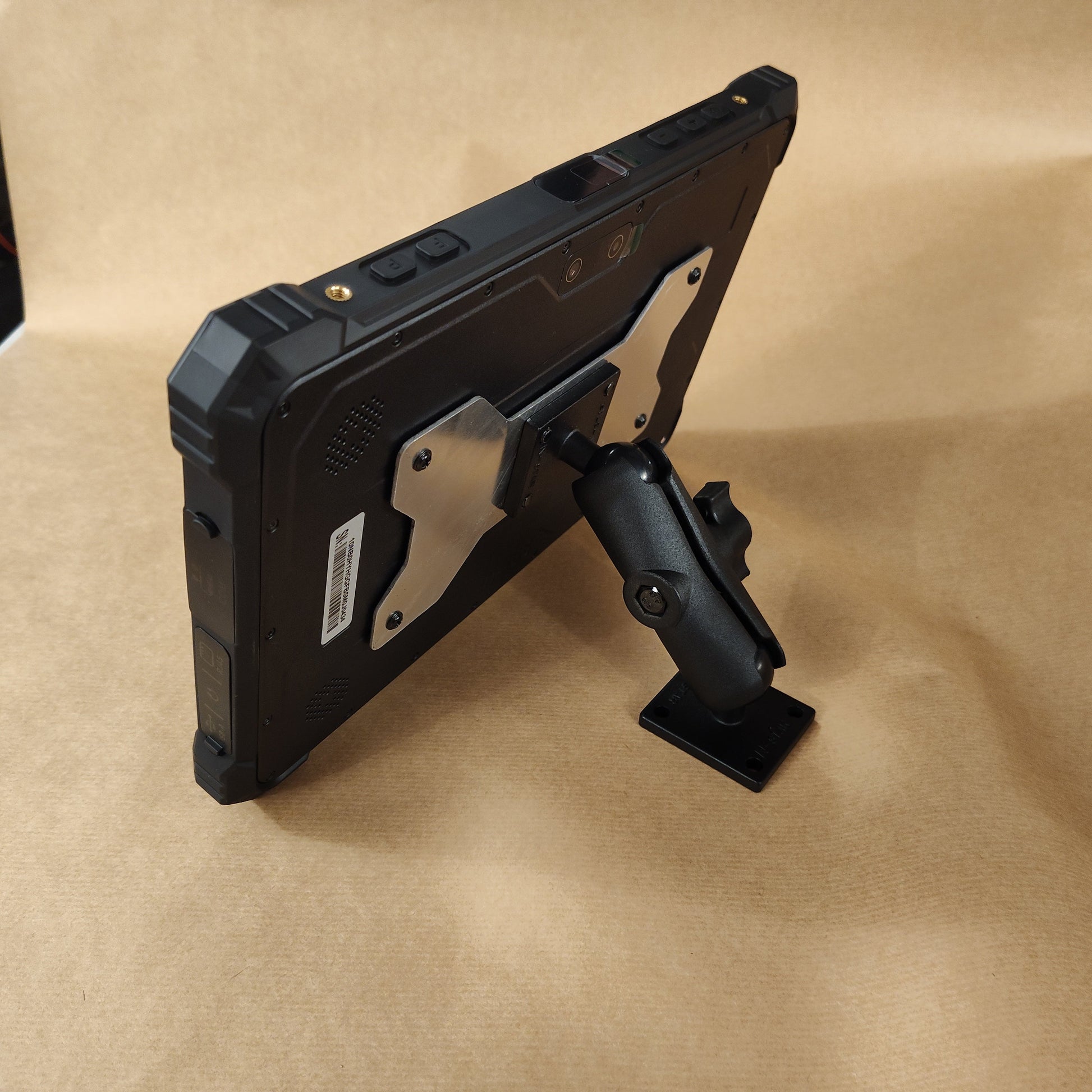

- Rugged tablet ball mounting kit
- Complete wiring loom, USB and RJ45 cables.
The only components not included are brackets and hydraulic hoses, as these will be unique to your machine. Crucially, all of the electronics are taken care of. Simply plug everything into its matching connector and turn it on!
How to determine your hydraulic system type:
- For most tractors, this information can be found on tractordata.com
- Give your tractor's dealer a phone call. They are keen to help!
- Give us a call! Contact Charles here.
Your tractor will likely either have Power Beyond or Front Loader ports, which are a convenient location to tee into with the hydraulic valve. See our installation manual here.
If your tractor has a reactive orbital, where the steering self-centres, you may need a double counterbalance valve to eliminate any back-feeding to the steering wheel.
How to determine your Wheel Angle Sensor (WAS) length:
- Turn your vehicle's steering to full lock in one direction
- Measure the length of the chrome rod extended out of the ram
- Choose the next largest sensor size. For example, if your ram measures 235mm, choose the 250mm sensor.
Standard wiring loom lengths (extension cables can be purchased in the Accessories section of the shop):
- 3m valve cable with 3x Deutsch DT06-2P connector

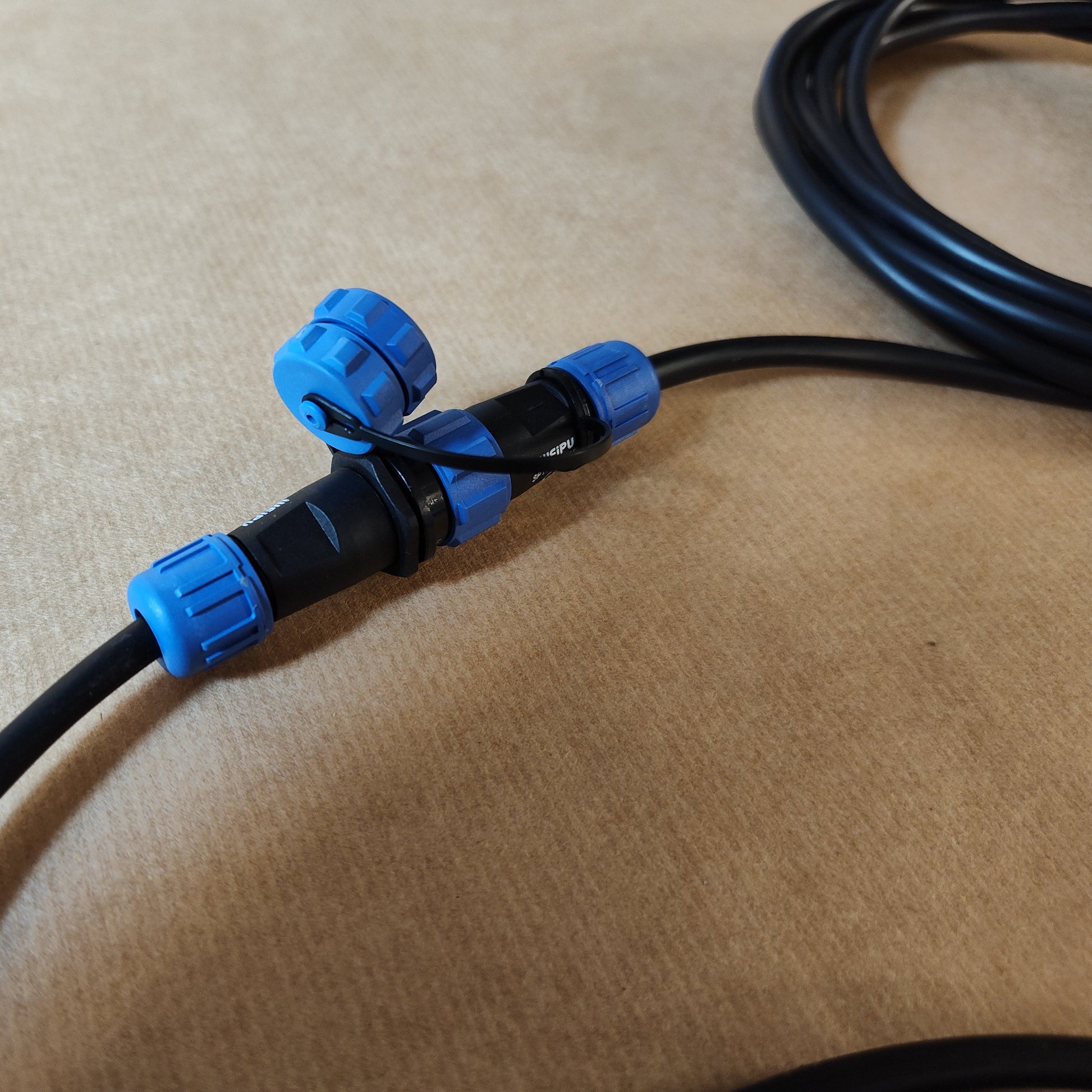

- 2.5m workswitch cable with SP13 connector
- 2m ESTOP cable with emergency stop button
- 3m autosteer engage cable with 16mm illuminated button
- 2m power cable with DIN 9680 connector
- 2m tablet charging cable with 1.4mm barrel jack
- 5m shielded WAS cable with JWPF connector
- 3m 4G antenna cable
- 4m GPS antenna cable
